| 參數 | Specifications | 技術指標 Technique data | |||||||||
| 線性行程 | Stroke length | 25 mm | 50 mm | 75mm | ... | 150mm | 300mm | 500mm | 900mm | ||

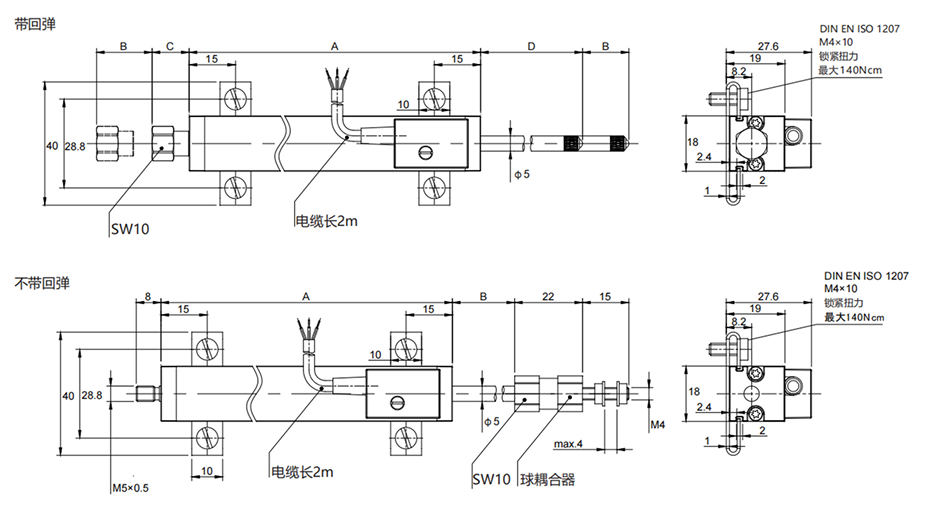

| 殼體長度(A±1mm) | Housing length(A±1mm) | 95 | 120 | 145 | ... | 220 | 375 | 580 | 985 | ||
| 機械行程(B) | Mechanical stroke(B±1mm) | 33 | 58 | 83 | ... | 150 | 312 | 515 | 922 | ||
| 非線性 | Nonlinearity | +0.05%F.S, +0.1%F.S, +0.25%F.S | |||||||||
| 重復性 | Repeatability | 0.02mm | |||||||||

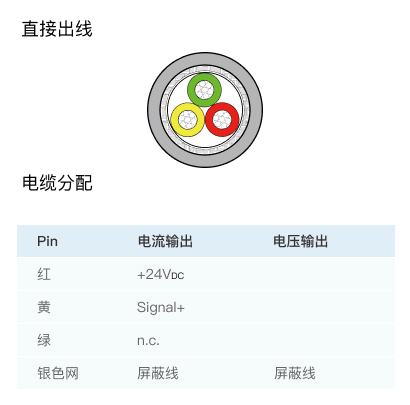

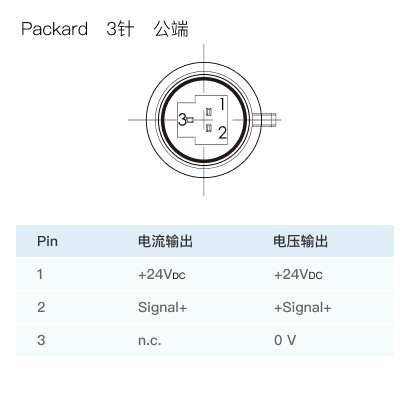

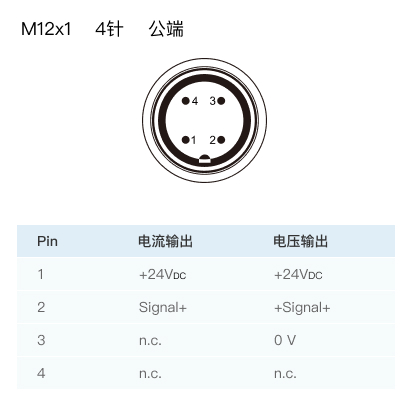

| 輸出信號 | Output signal | 4~20mA, 0~5V, 0~10V, 0~±5V, 0~±10V | |||||||||
| 工作電壓 | Operating voltage | 24VDC(12~32VDc) | |||||||||
| 工作溫度 | Operating temperature | -30~100℃ | |||||||||
| 抗振性能 | Vibration proof | 20g(5...2000 Hz) | |||||||||
| 耐沖擊性 | Strike proof | 50g(11 ms) | |||||||||
| 位移速度 | Displacement speed | ≤10m/s | |||||||||
| 外殼材質 | Material | 鋁合金 Aluminium alloy | |||||||||
| 防護等級 | Ip protection | IP54 | |||||||||
