NS-P-G
專為鋼鐵、能源行業應用設計
疲勞強度大于1000萬次（10%F.S~100%F.S）
防護等級IP65/IP67
超穩定性
| 參數 | Specifications | 技術指標 Technique data | |||||||||
| 壓力范圍 | Measuring ranges | -100kPa...0~1.0…1.6…3.0…10…20… 40…60…70… 80…90...100MPa | |||||||||
| 過載壓力 | Overload pressures | 200%F.S 150%F.S 150%F.S | |||||||||
| 破壞壓力 | Burst pressures | 500%F.S 300%F.S 200%F.S | |||||||||
| 工作方式 | Operational Mode | 表壓，絕壓，負壓 | |||||||||
| 測量介質 | Measuring Media | 對不銹鋼304和 316L不腐蝕的氣、液體 | |||||||||
| 輸出信號 | Output signal | 4~20mA 0~5VDC 0~10VDC | |||||||||
| 工作電壓 | Operating voltage | 24VDC(12~32VDC) | |||||||||
| 綜合精度 | Accuracy | ±0.05%F.S ±0.1%F.S ±0.25%F.S | |||||||||
| 長期穩定性 | Long-term drift | ≤±0.1%F.S/ 年（典值） | |||||||||
| 工作溫度范圍 | Operating temperature range | -40~+100℃ | |||||||||
| 絕緣阻抗 | Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| 耐振性能 | Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| 耐沖擊性 | Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| 抗干擾 | EMC proof | IEC 61000-6-2/3/4 | |||||||||

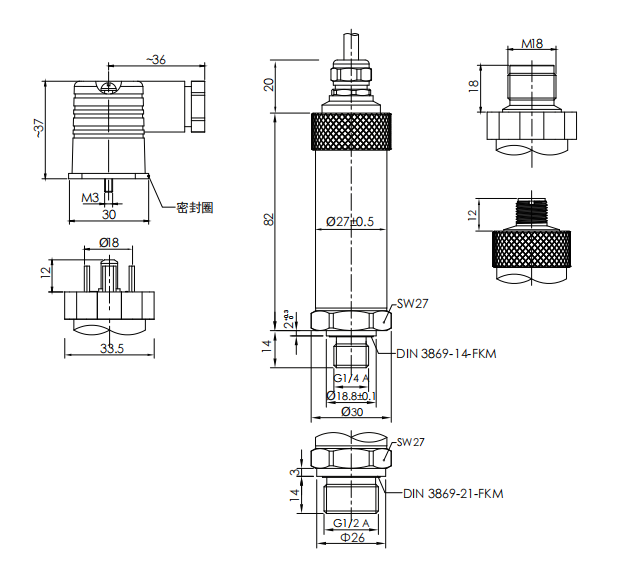

| 機械連接 | Mechanical connection | G1/4 A, G1/2 A, NPT1/2, NPT1/4, M20×1.5, M12×1 74°錐 | |||||||||
| 外殼材質 | Material | 不銹鋼 | |||||||||

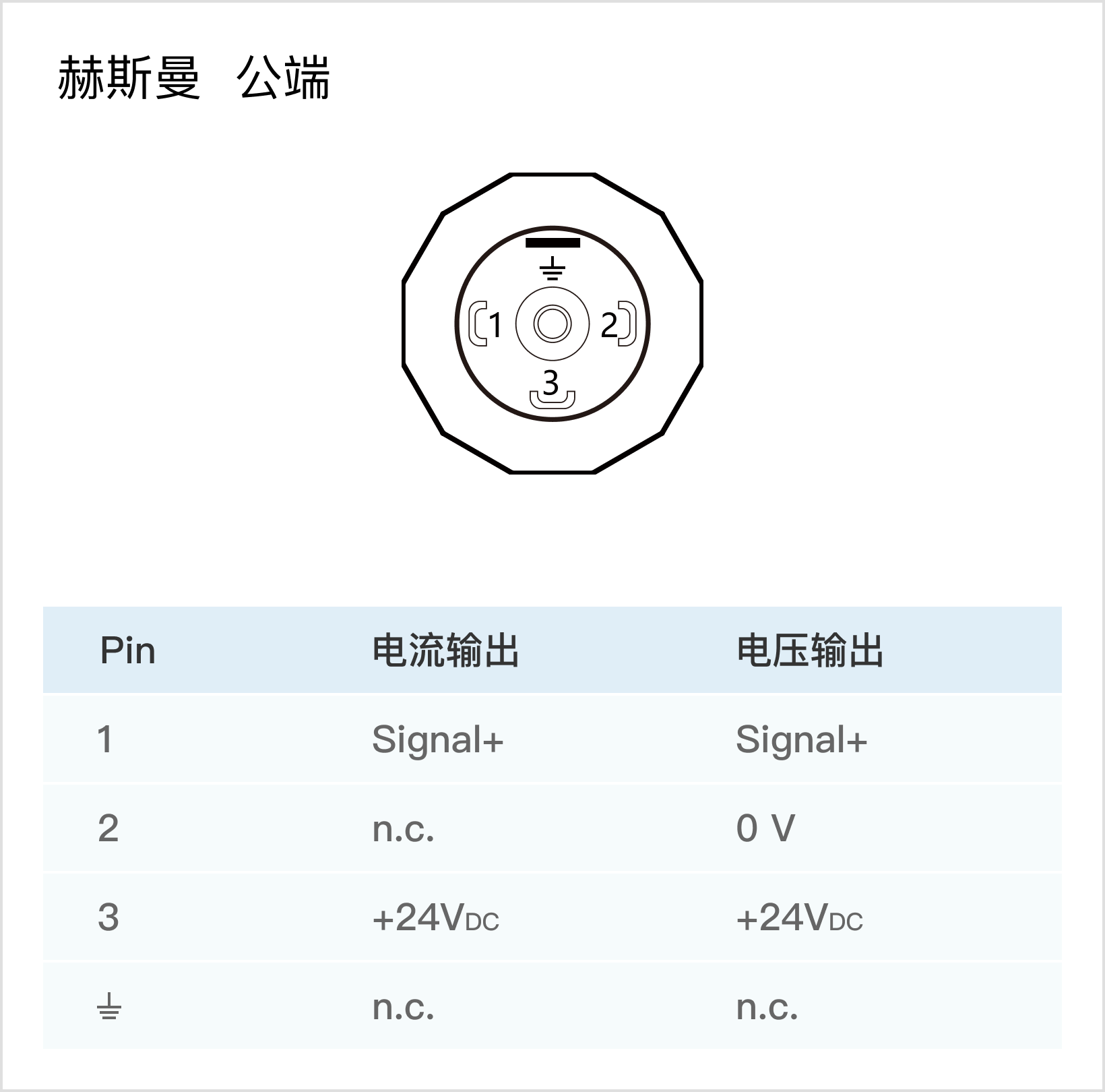

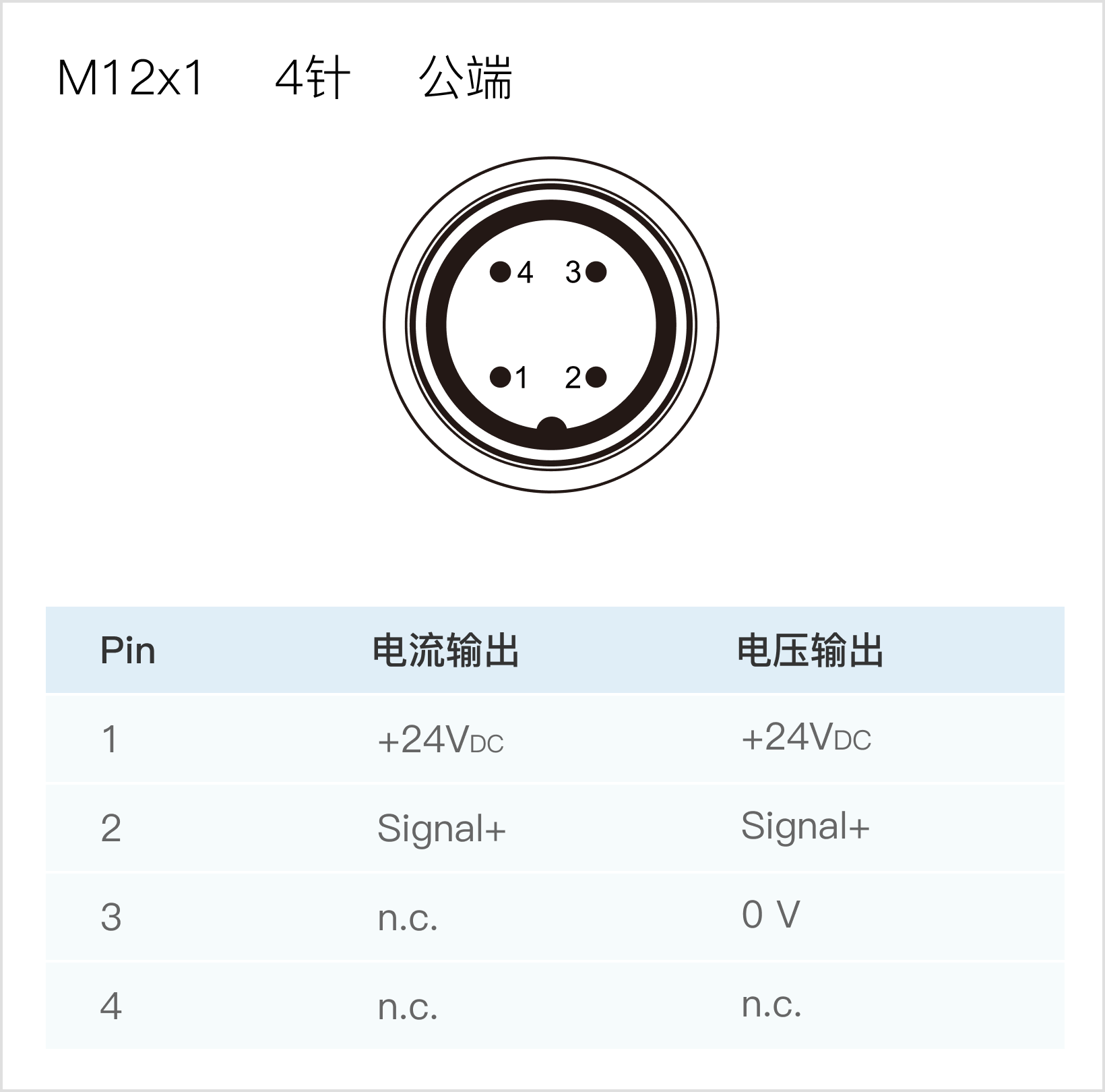

| 防護等級 | IP protection | IP65 (赫斯曼接插件) IP67 (M12×1連接器或直出線) | |||||||||
