NS-P-I7
| 參數 | Specifications | 技術指標 Technique data | |||||||||
| 壓力范圍 | Measuring ranges | 0~0.8…1.0…1.6…3.0…5.0…10…20… 40…50…60...70MPa | |||||||||
| 過載壓力 | Overload pressures | 200%F.S 150%F.S | |||||||||
| 破壞壓力 | Burst pressures | 500%F.S 300%F.S | |||||||||
| 工作方式 | Operational Mode | 表壓 | |||||||||
| 測量介質 | Measuring Media | 對不銹鋼304和 316L不腐蝕的氣、液體 | |||||||||
| 輸出信號 | Output signal | 4~20mA 0~5VDC 0~10VDC | |||||||||
| 工作電壓 | Operating voltage | 24VDC(12~32VDC) | |||||||||
| 綜合精度 | Accuracy | ±0.5%F.S（典型） | |||||||||
| 長期穩定性 | Long-term drift | ≤±0.2%F.S/ 年 | |||||||||
| 工作溫度范圍 | Operating temperature range | -30~+80℃ | |||||||||
| 絕緣阻抗 | Insulation resistance | ≥100MΩ(100VDC) | |||||||||
| 耐振性能 | Vibration resistance | IEC 60068-2-6 (5…2000Hz, 20g) | |||||||||
| 耐沖擊性 | Shock resistance | IEC 60068-2-27 (50g, 11ms) | |||||||||
| 抗干擾 | EMC proof | IEC 61000-6-2/3/4 | |||||||||
| 外殼材質 | Material | 不銹鋼 | |||||||||

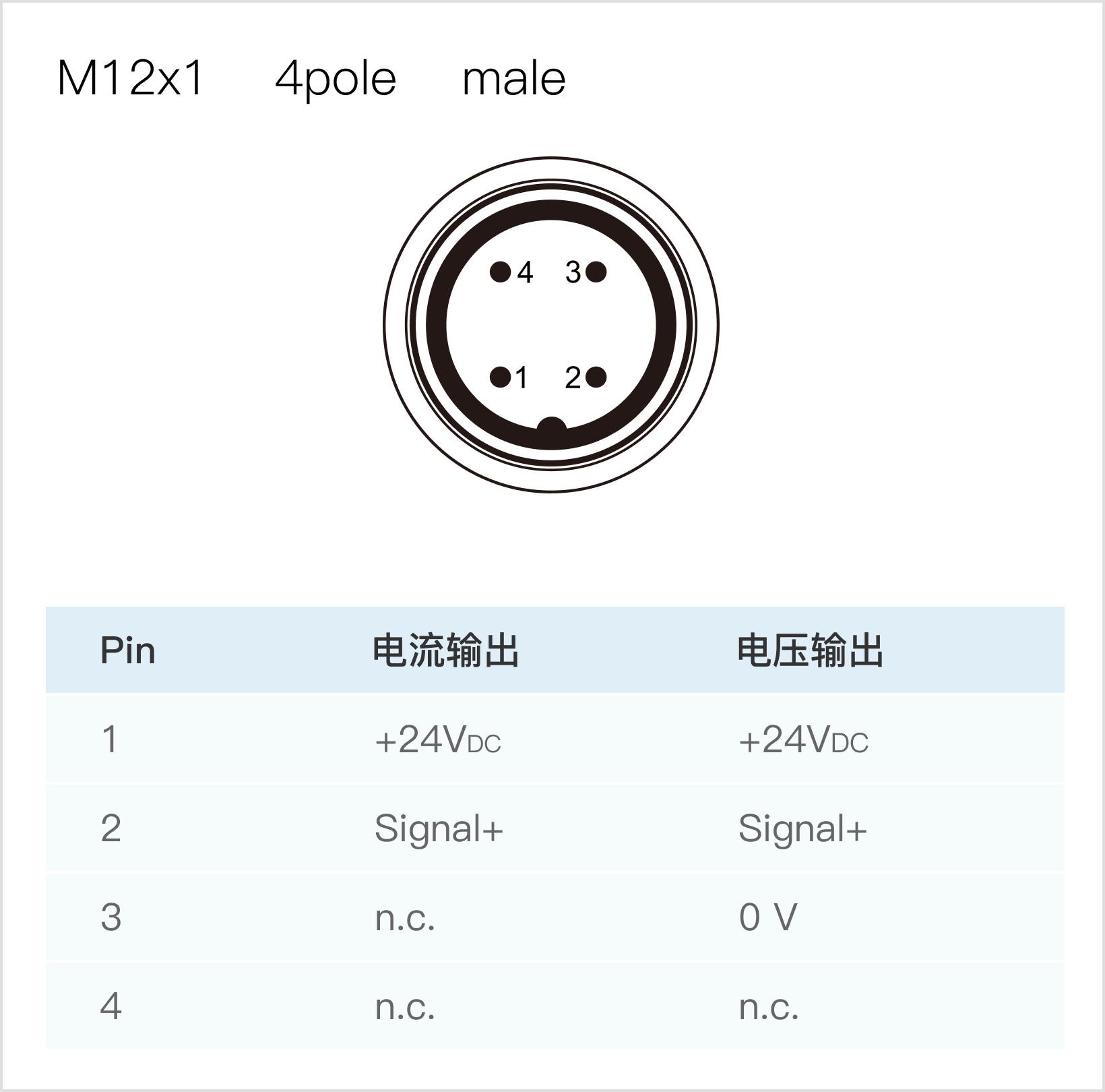

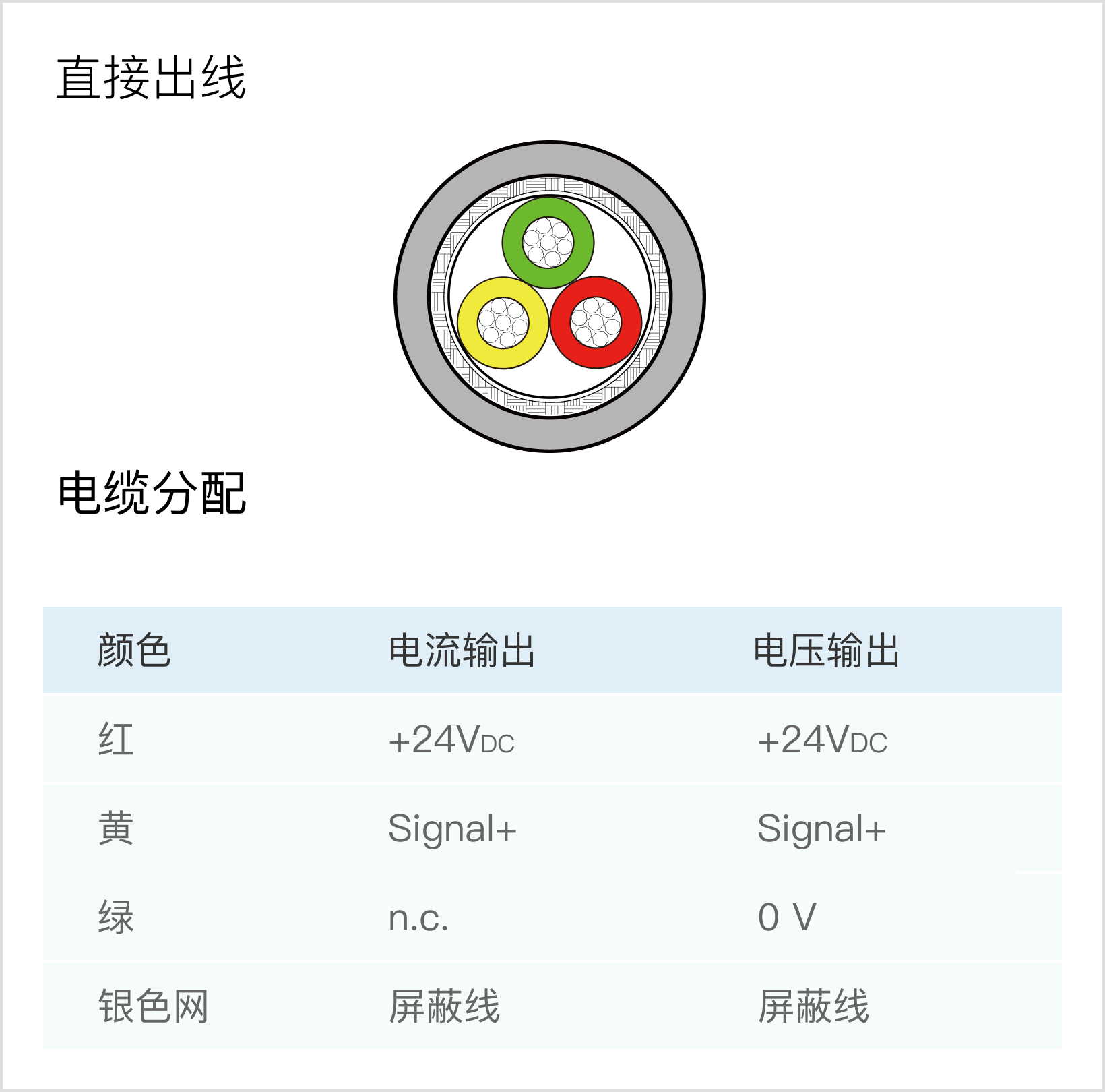

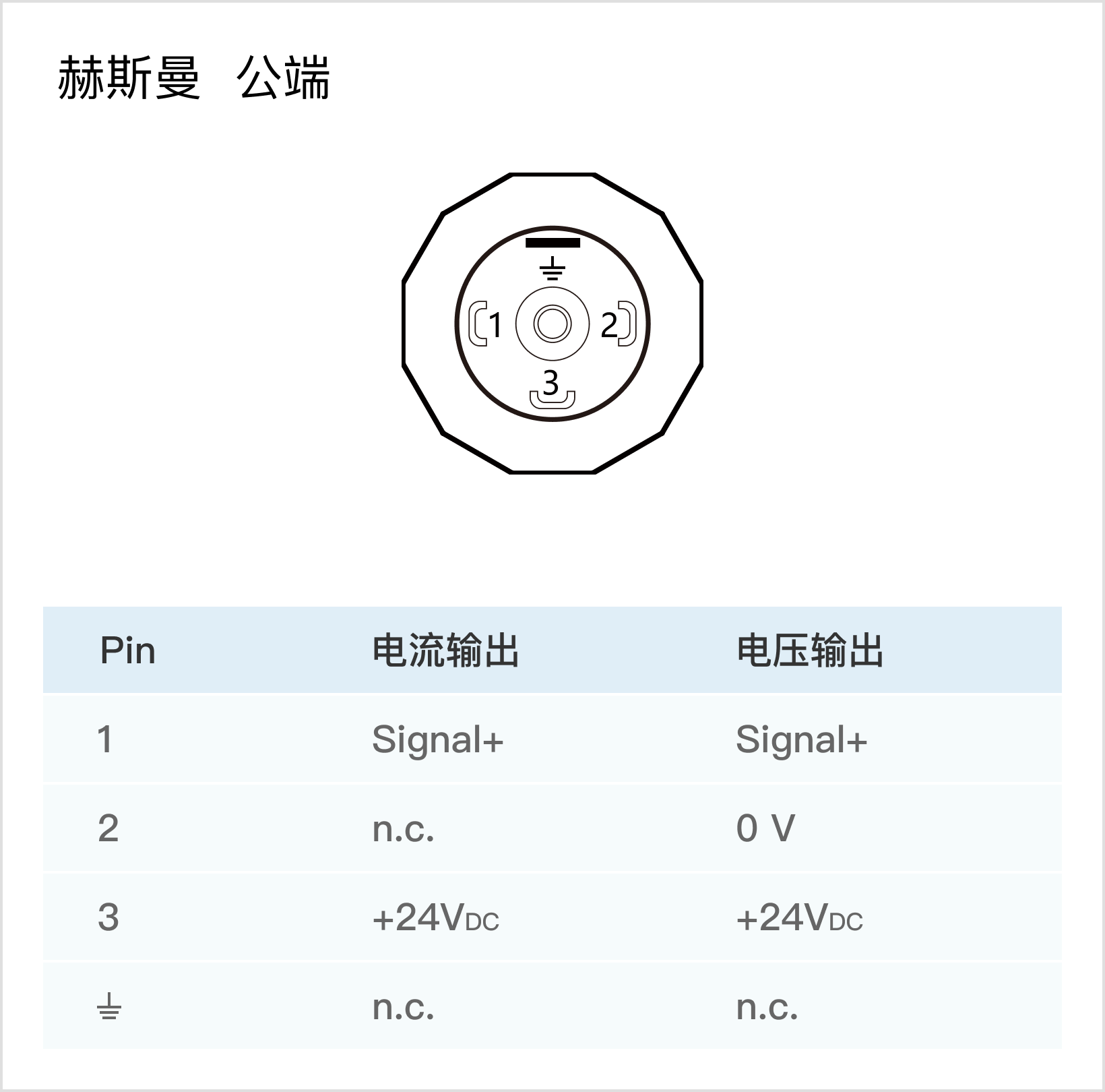

| 防護等級 | Ip protection | IP65 (赫斯曼接插件) IP67 (M12×1連接器或直出線) | |||||||||
