NS-7

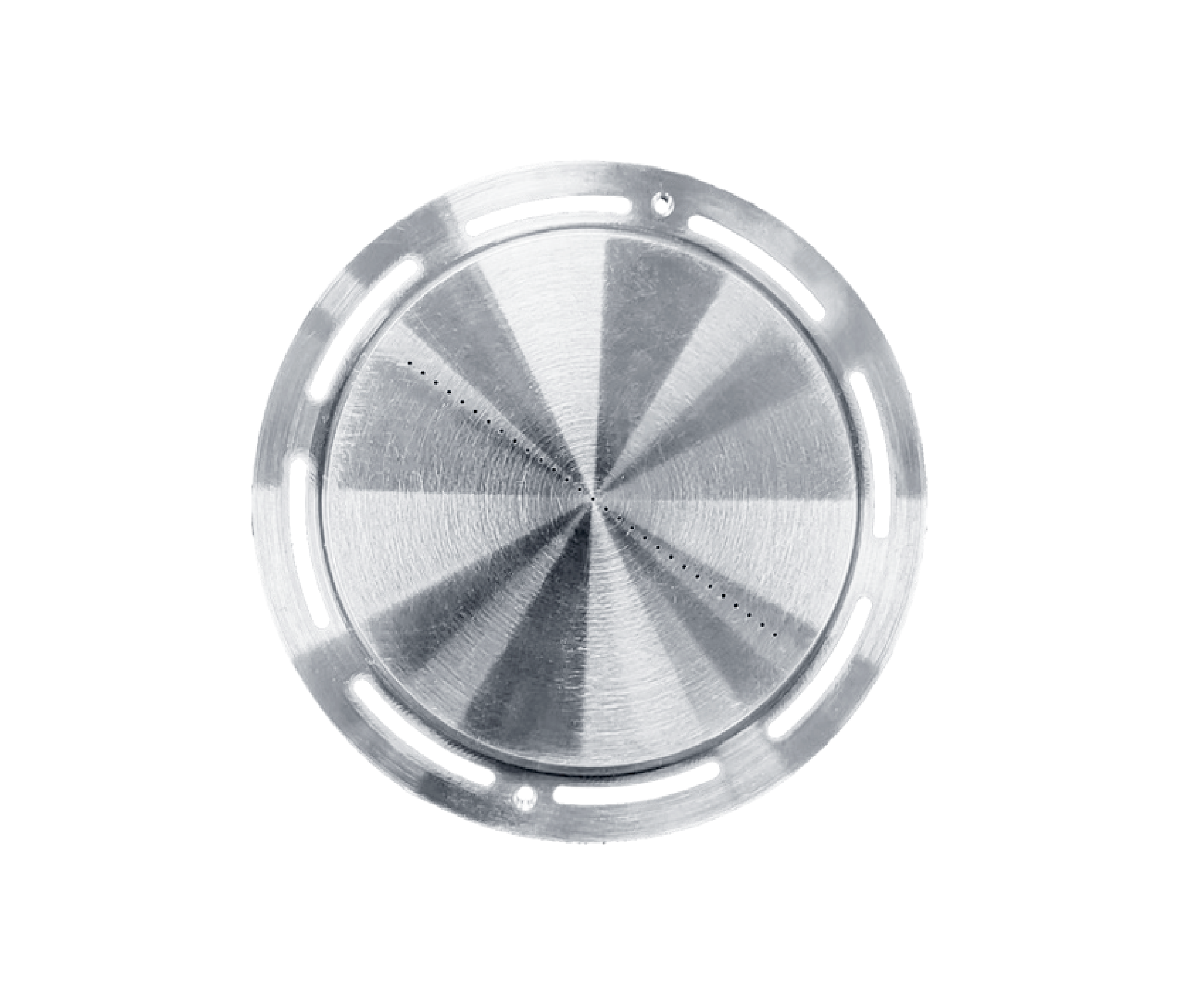

NS-7陣列式動態壓力傳感器為29路一體式傳感器，體積小而薄、集成度高
固有頻率>100 KHz
可根據需要設計陣列和點數
| 參數 | Specifications | 技術指標 Technique data | |||||||||
| 壓力范圍 | Measuring ranges | 絕壓0~500kPa（測量數量可選） | |||||||||
| 過載壓力 | Overload pressures | 200%F.S | |||||||||
| 破壞壓力 | Burst pressures | 500%F.S | |||||||||
| 工作方式 | Operational Mode | 絕壓 | |||||||||
| 測量介質 | Measuring Media | 液體（干凈無腐蝕）、氣體 | |||||||||
| 輸出信號 | Output signal | 100mV, 0-5VDC | |||||||||
| 工作電壓 | Operating voltage | 5VDC, 24VDC | |||||||||
| 綜合精度 | Accuracy | ±0.25%F.S（典值） | |||||||||
| 動態頻響 | Dynamic frequency response | 10kHz | |||||||||
| 工作溫度范圍 | Operating temperature range | -30~+80℃ | |||||||||
| 儲存溫度范圍 | Storage temperature range | -40~+135℃ | |||||||||
| 消耗電流 | Current consumption | ≤10mA | |||||||||
| 絕緣阻抗 | Insulation resistance | ≥100MΩ@100VDC | |||||||||
| 外殼材質 | Material | 不銹鋼 | |||||||||
